Portable X-ray Residual Stress Analyzer Hardened Layer Thickness Tester Non-Contact Surface Hardness Variation Scanner

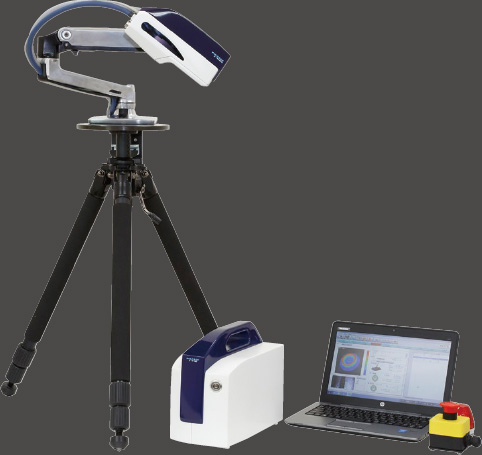

μ-X360J Portable X-ray Residual Stress Analyzer

Features
We have succeeded in producing the world's 1st "cos alpha method" applied residual stress analyzer on a commercial basis; this analyzer is compact, cost-effective, high-speed and high-precision measurement equipment.
  • Measurement items: Residual stress, Full width at half maximum, and retained austenite.
  • Full diffraction rings can be obtained on two-dimensional detector.
  • Crystal structure information such as large crystal grains and crystal orientation can be displayed.
  • Low power X-ray output (30kV, 1.6mA).
  • Easy set up and simple operation.
  • Easy and fast X-ray tube exchange by users: enables a greater range of materials to be measured – tube target’s available include Cr, V, Cu, Co, Mn.
  • Easy to carry and measure in the field because of its portability.
Applications
  • Various industrial fields such as transportation equipment (railways, cars, ships, airplanes, etc.), bearings, iron and steel structure and components, electric power, heavy machines, surface modification, etc.
  • Domestic/Overseas universities and public research institutions
  • Solution to problems such as dimensional change after machining, cracks/fissures of weld zones, cracks after heat treatment, strength shortage after treatment, etc.
  • Process improvements, quality control, yield improvement, equipment durability check, remaining life assessment of infrastructure, etc.
Technical Document Download
μ-X360J Brochure
Video
PULSTEC Video

Options

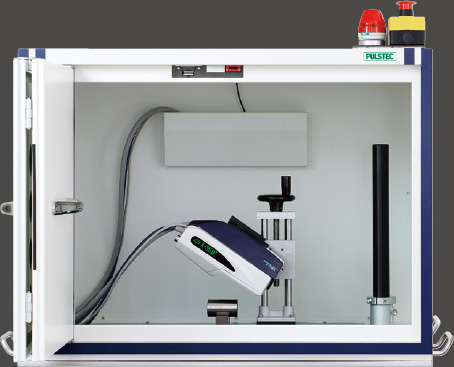

◆ X-ray Safety Cabinet
This safety cabinet with interlock protection is designed to protect users from X-ray exposure; cabinet leakage less than 0.1μSv/hour.

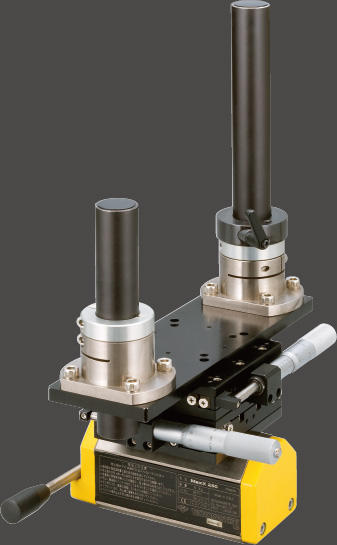

◆ Flexible Arm with Magnet Stand
Since the bottom face of the stand is strongly magnetic, it is easy to adjust the sensor unit position with flexible arm. Both X and Y axis are adjustable in a 50mm range in steps with 0.01mm resolution.

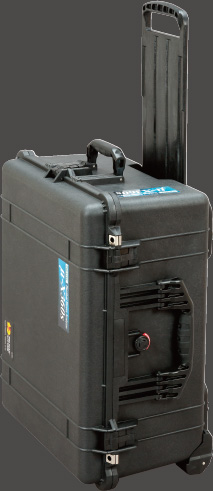

◆ Hand-carry Case
This hand-carry case can contains the complete standard set of the unit for the measurement.

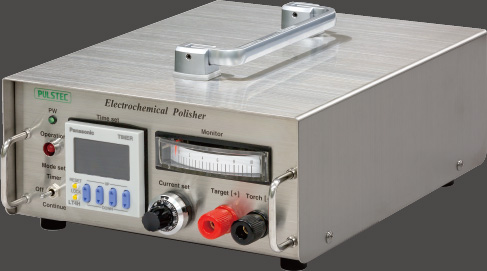

◆ Electrochemical Polisher
This electrochemical polisher for the controlled removal of the metal surface layers without having minimal impact on the stress. Use this equipment when you need to measure the residual stress in the depth direction, not only the surface.
Various other options are available according to the materials to be measured.
Installation of μ-X360J to Overseas Countries

Pulstec office

Pulstec Industrial Co.,Ltd.
7000-35, Nakagawa, Hosoe-cho, Hamana-ku, Hamamatsu-City, Shizuoka Pref.
431-1304, Japan
+81 53 522 3611
Pulstec USA, Inc. (Subsidiary)
41800 West Eleven Mile Road, Suite 223 Novi, MI 48375 USA
+1 310 316 8185

https://www.pulstec.net/

Regional sales and technical partners

Europe

Asia

Quantum Design China
Room501, Building B22,Universal Business Park, No.10 Jiuxianqiao Road, Chaoyang District, Beijing, 100015 PRC
+86 10 85 120 277/78/79/80

https://www.qd-china.com/
Likuan Technology Crop.
12F-8, No.258, Laincheng Rd, Junghe Dist., New Taipei City, 23553, Taiwan
+886 2 8227 1336

https://www.likuan.com.tw/
VISIONPLUS Co.,Ltd.
1F 15, Saemaeul-ro 1beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 13572, Korea
+82 31 625 1300

http://www.visionplus21.kr/
Kyoritsu Electric India Pvt Ltd.
Plot. No. 10 (P), Survey No. 234 & 245, India Land Global Industrial Park,
Rajiv Gandhi Infotech Park, Phase 1, Hinjewadi, Pune, Maharashtra 411057, India.
+91 95525 97468

https://kyoritsuelectric.com/
LMS TECHNOLOGIES PTE LTD
20 Sin Ming Lane #05-59 Midview City Singapore, 573968
+65 6451 1123

http://lmstech.com.sg/
LMS INSTRUMENTS CO., LTD
128/190 Phyathai Plaza Building
17th Floor, Phyathai Road, Bangkok 10400, Thailand
Thung-Phyathai, Radthavee, Bangkok 10400, Thailand
+66 2 612 9091

https://lmsinstruments.co.th/
PT.HAMABO INDONESIA
(Overseas branch of HAMABO CORPORATION JAPAN)
Ruko Celebration Boulevard Blok AA. 10 No.31
Grand Wisata Lambangsari, Tambun Selatan, Bekasi, Jawa Barat. Indonesia, 17510
+62 21 8262 3695

South America

VAS Technologia Industrial
R. São Francisco, 506 - Santo Antônio, São Caetano do Sul - SP, 09530-050, Brazil
+55 11 4232 3280

http://vastecnologia.com.br/

Hardness EYE Hardened Layer Thickness Tester

Features
The Hardness EYE allows for easy measurement of case hardness depth and analysis of the hardness transition curve on heat-treated steel.
  • Hardness is calculated using FWHM data obtained via X-ray diffraction.
  • Reduces the labor required for pre-treatment processes, such as resin embedding or mirror surface polishing.
  • Setting the sample is easy—just place it surface-down on the one-axis automatic stage.
  • Features a microscope for accurate position adjustment.
  • Easy to use—just press 'Start Measurement' to automatically measure case hardness depth and analyze the hardness transition curve.
  • Results are displayed as either "OK" or "Not Good" based on your programmed thresholds.
Applications
  • Capable of inspecting case depth of carburized hardened steel.
  • Capable of inspecting case depth of induction hardened steel.
Download
Hardness EYE Brochure

Video
PULSTEC Video

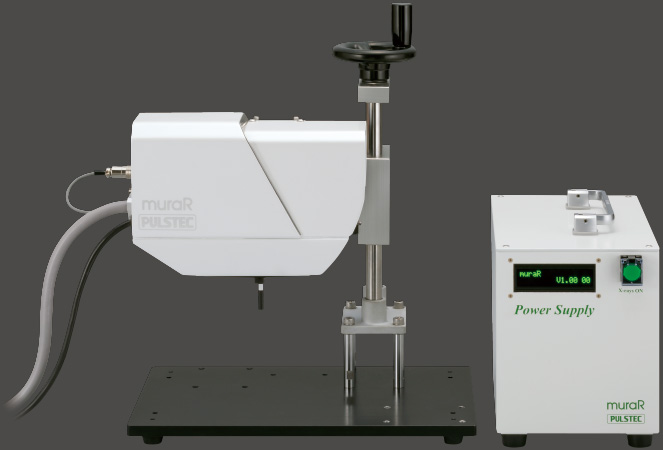

'muraR' Non-Contact Surface Hardness Variation Scanner

Features
World's first technology! Automatic scanner of 'Hardness Variation' of surface of steel by non-contact and non-destructive inspection.
  • High speed scanning of 'Hardness Variation'.
  • Enable to measure effect of heat treatment, machining burn and grinding burn by non-destructive inspection.
  • In-line inspection or integrated inspection by robot is available because of the small size and light weight sensor head.
  • Auto mapping function, judgment function is available by customizing software.
  • Free from visual inspection which needs special skills.
Applications
  • Inspection or evaluation for machining burn or grinding burn.
  • Alternative inspection of destructive or visual inspection by nital etching.
  • Inspection of quenching variation after heat treatment.
Video
PULSTEC Video
